Technogenia specializes in the production of spherical cast tungsten carbide coating solutions for protection against abrasion, erosion, corrosion and impact to extend the wear life of critical components in numerous industries such as Oil & Gas Mining, Tunnelling, Industrial mixing system, Agriculture, Food processing (Technopowders have the FDA agreement and can be used in the food industry), Construction equipment and many others.
Tungsten Carbide Torch Applied Welding Ropes
(Nickel Core Wire Coated with Thick Layer of Tungsten Carbide and NiCrBSi Alloy)
| Application | |
| OIL & GAS | Stabilizer blades; Drilling heads |
| FOUNDRIES & STEEL INDUSTRY | Blades & scrapers for sand mixers; Press guides |
| CERAMIC INDUSTRY | Press screws; Blades & screws for mixers; Scrapers for cylinder; Sheaths & casings for press |
| ALUMINIUM PLANTS | Screw elements |
| Dredging | Cutter teeth |
| WASTE TREATMENT & RECYCLING | Conveyor screws |
| FOOD INDUSTRY | Decanter centrifuge screw for oil extraction |
A. Technodur®
 |
Product | Suffix | Thickness of Deposit (mm) | Main Grain Size (mm) | Rope Diameter (mm) |
|---|---|---|---|---|---|
| Technodur®: Crushed Tungsten Carbide grains Hardness 2000 HV ± 200 HV |
GF | 2-5 mm | 0.2-0.4 mm | 4-6 and 8 mm | |
| GN | 3-6 mm | 0.4-0.7 mm | 4-6 and 8 mm | ||
| GG | 3-8 mm | 0.7-1.2 mm | 6 and 8 mm | ||
| TGG | 4-10 mm | 1.2-2.2 mm | 6 and 8 mm |
Packaging available in standard 20Kg reels(spools).

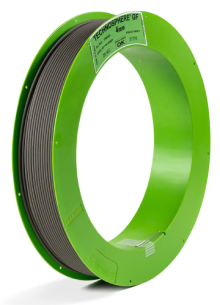

B. Technosphere®
|
Product | Suffix | Thickness of Deposit | Main Grain Size | Rope Diameter |
|---|---|---|---|---|---|
| Technosphere®:
Spherical Cast Tungsten Carbide grains Hardness 3000 HV ± 500 HV |
GF | 2-5 mm | 0.2-0.4 mm | 4-6 and 8 mm | |
| GN | 3-6 mm | 0.4-0.7 mm | 4-6 and 8 mm | ||
| GG | 3-8 mm | 0.7-1.2 mm | 6 and 8 mm | ||
| TGG | 4-10 mm | 1.2-2.2 mm | 6 and 8 mm |
Packaging available in standard 20Kg reels(spools).

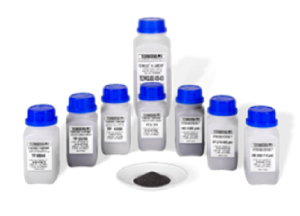

TECHNOPOWDERS
NICKEL-BASED HARDFACING POWDERS
(Oxyacetylene Torch)
| Product | Alloy | Hardness | Particle Size | Melting Point | Deposit Density | Recommended Layer Thickness | Application |
|---|---|---|---|---|---|---|---|
| TECHNOPOWDER MB40 (Underlayer Powder) | NiCrBSi | 35-40 HRC | 15-110 m | 1087°C | 8.2 g/cm3 | 0.5 mm | Employed as a buffer layer while hardfacing with Technosphere / Technodur Tungsten carbide wires |
| TECHNOPOWDER TP40RC (Underlayer Powder) | NiCr | 40 HRC | 15-110 m | 1087°C | 8.2 g/cm3 | 0.5-3 mm | Employed as a buffer layer while hardfacing with Technosphere/ Technodur Tungsten carbide wires |
| TECHNOPOWDER TP 60 RC | NiCrBSi 12-16% Cr |
60 HRC | 15-110 m | 1038°C | 7.8 g/cm3 | 1-2 mm | Finishing or sliding coat for barrel extruder and screw conveyor faces |
PRE-MIXED CARBIDE POWDERS
| Product | Base Alloy | Carbide Hardness | Matrix Hardness | Carbide Size | Melting Point | Deposit Density | Recommended Layer Thickness | Application & Machinability |
|---|---|---|---|---|---|---|---|---|
| TECHNO POWDER 2030 | Nickel base + crushed cast Tungsten Carbide | 2000 HV ± 200 HV | 60 HRC | 40-100 um | 1038°C | 10.5 g/cm3 | 1-2 mm | Thin thickness Machining: not possible Grinding: Possible |
| TECHNO POWDER 40/40 | Nickel base + crushed cast Tungsten Carbide | 2000 HV ± 200 HV | 40 HRC | 40-100 um | 1087°C | 11.5 g/cm3 | 1-2 mm | Hardfacing, medium thickness Machining: not possible Grinding: Possible / depending upon shape |
| TECHNO POWDER 4000 | Nickel base + Sphérotène® | 3000 HV ± 500 HV | 60 HRC | 40-100 um | 1038°C | 10.5 g/cm3 | 1-2 mm | Very high performance hardfacing, low thickness Machining: not possible Grinding: Possible / depending upon shape |
| TECHNO POWDER 4040S | Nickel base + Sphérotène® | 3000 HV ± 500 HV | 40 HRC | 40-100 um | 1087°C | 11.5 g/cm3 | 1-2 mm | Very high performance hardfacing, medium thickness Machining: not possible Grinding: Possible / depending upon shape |
COMPOSITE RODS
ULTITECH® PS: 01600
 |
High-performance nickel composite rods containing Spherotene®, spherical cast tungsten carbide (3000 HV).
Specially designed for drilling tools and hardfacing of edges. Easy to apply using an oxy-acetylene torch or TIG welding — produces no fumes. Supplied in 5 kg boxes (diameter of 7mm, 490 mm length, 250 gms/rod). |
Technology® Plus
|
Technoloy® is a composite rod manufactured from crushed sintered tungsten carbide grains, bonded with a bronze–nickel matrix (Cu 50, Zn 40, Ni 10) and featuring a low melting point of 870°C. Originally developed for cutting tools, Technoloy® rods are also ideal for hardfacing applications and wear protection. Supplied in 5 kg or 10 kg boxes (9mm – Diameter, 450 mm - Length, 250 gms/rod). |
Flux Cored Wires
STANDARD SIZES AVAILABLE: 1.6 mm - PACKAGING: SPOOLS 5 Kg to 15 Kg
|
A. Technocore Ni Flux cored wires Nickel-based metal-cored wire reinforced with spherical cast tungsten carbide (Spherotene, ~3000 Hv), ideal for hardfacing components exposed to aggressive abrasion and corrosion. The nickel matrix provides excellent toughness and corrosion resistance, while low heat input ensures carbide integrity and ease of re-application. Suitable for high-value tools requiring extended service life. |
| B. Technocore Fe Flux cored wires Iron-based metal-cored wire containing spherical cast tungsten carbide (Spherotene, ~3000 Hv), developed for cost-effective hardfacing in high-wear environments. The iron matrix delivers solid wear resistance with good weldability. Low heat input helps retain carbide hardness, and the deposit is easily repairable, making it suitable for frequent tool refurbishment. |

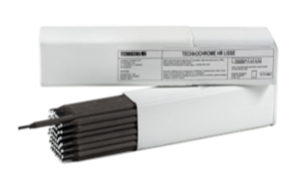

Hardfacing Electrode
|
Technochrome® HR LISSE
High-chromium content (33%) hardfacing electrode designed to produce exceptionally smooth, uniform surfaces with a very low coefficient of friction. Achieves maximum hardness of 62 HRC with a two-layer weld deposit. Supplied in 5 kg boxes (450 mm length). |
Special Equipment
A.TECHNOKIT 2000 US
|
Gas brazing torch kit - designed specifically for Spraying nickel-based powders Technogenia wire ropes Supplied With: Gas torch handle and nozzles Powder feeder cup Tool kit for maintenance Manual and safety accessories Key Features:
|
B. FD2000 (220V) – Semi-Automatic Cord Feeder
|
A cord feeding unit for automated welding or brazing with tungsten carbide welding ropes. Input Power: 220V Adjustable feed rate to control deposition Compatible with all diameters of tungsten carbide welding ropes Used for applying Technodur ropes or Technosphere welding ropes |
